Trimble GCS900 for Scrapers

Grade Control for Scrapers

Move dirt faster and more precisely, with no stakes, to cut costs and improve safety.

GCS900 3D

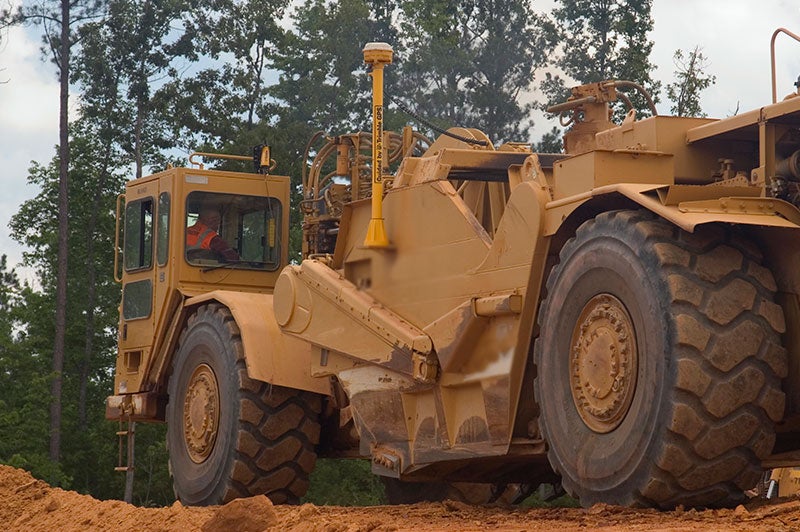

GCS900 The Trimble GCS900 3D Grade Control System installed on a scraper is ideal for mass excavation applications.

  • Track GPS, GLONASS and Galileo signals

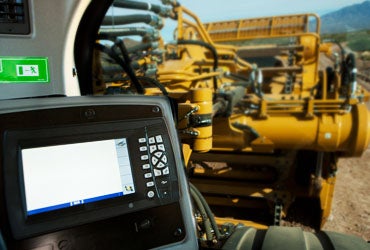

  • Display design information and live cut/fill indications in the cab
  • Excavate in a safer, stakeless environment.
  • Monitor avoidance zones in real-time
  • Collect as-built data as the machine cuts to grade
  • Keep tighter control over safety issues and see precisely where dirt is being moved on site
  • Resource Center



Applications
GCS900 for scrapers is useful for:

  • Land reclamation projects
  • Dam and reservoir construction
  • New infrastructure projects
  • Landfills and waste deposits



Configurations

Single GNSS
Measures the position and slope of the blade and compares that to design data for rough grading and mass excavation on complex design surfaces

Dual GNSS
Measures the exact position, cross slope and heading of the blade for rough grading and mass excavation on steep slopes and complex design surfaces

Trimble GCS900 Overview on K-Tec Scraper
